A crucial component plays a significant role in maintaining your vehicle’s performance and overall condition. Your car’s flywheel is a vital mechanical device that stores rotational energy, providing stability and facilitating smooth engine operation.
As a key part of your vehicle’s powertrain system, the flywheel acts as an energy reservoir, helping to maintain continuous angular momentum. Understanding its function is essential, especially when evaluating CPO vehicles, as it can reveal important information about a vehicle’s overall condition and previous use.
Key Takeaways
- Discover how the flywheel impacts your car’s performance and stability.
- Learn about the role of the flywheel in maintaining engine operation.
- Understand the significance of flywheel condition in CPO vehicles.
- Gain insights into the mechanical aspects of your vehicle’s powertrain system.
- Make informed decisions about vehicle purchases and maintenance.
What is a Flywheel in Your Car?
Understanding the flywheel’s role is essential for grasping how your vehicle’s engine operates. The flywheel is a critical component that plays a vital part in the smooth functioning of your car’s engine system.
Definition and Basic Purpose
The flywheel is a mechanical device that stores energy kinetically in the form of a rotating mass. Its primary purpose is to smooth out the delivery of power from the engine to the transmission, ensuring a more consistent and stable output.
Location in the Engine System
The flywheel is typically located at the rear end of the engine crankshaft, where it connects to the clutch or torque converter, depending on whether your vehicle has a manual or automatic transmissionengine and transmission systems, serving as a crucial connecting component. By being attached to the crankshaft, the flywheel captures and stores energy from each power stroke of the engine, helping to maintain uniform torque output.
The Function of the Flywheel in Car Engines
The function of flywheel is multifaceted and absolutely critical to the smooth and reliable operation of any internal combustion engine, serving as far more than just a simple weighted disc attached to the crankshaft. Its most fundamental role stems from the very nature of how piston engines generate power: combustion occurs in distinct, intermittent pulses within each cylinder, creating bursts of torque followed by moments where no power is actively produced (during exhaust, intake, and compression strokes).
Without a flywheel, this inherently uneven power delivery would result in a jarring, jerky rotation of the crankshaft, making the engine run incredibly rough, especially at lower speeds, and potentially causing it to stall between power strokes. The flywheel, typically a heavy, circular component made of cast iron or steel (or sometimes lighter materials like billet aluminum in performance applications), possesses significant rotational inertia due to its mass being concentrated around its outer rim. This inertia allows it to effectively act as an energy reservoir; it absorbs kinetic energy during the power stroke when the engine is accelerating the crankshaft, storing this energy momentarily.
Then, during the non-power strokes when the crankshaft would naturally decelerate, the flywheel releases this stored energy, carrying the crankshaft’s rotation through these gaps and maintaining a much smoother, more consistent angular velocity. This smoothing function of flywheel is paramount for engine stability, reducing vibrations felt by the occupants and minimizing stress on other engine and drivetrain components. Beyond simply smoothing power delivery, another vital function of flywheel in vehicles equipped with manual transmissions is to serve as the crucial friction surface for the clutch assembly.
The clutch disc, connected to the transmission input shaft, presses firmly against the flywheel’s machined face when engaged. This direct contact allows the engine’s rotational power, smoothed by the flywheel, to be transferred seamlessly through the clutch and into the transmission, ultimately driving the wheels. When the driver depresses the clutch pedal, the pressure is released, allowing the clutch disc to disengage from the flywheel, interrupting the power flow so gears can be changed or the vehicle can sit stationary with the engine running. The condition and flatness of this flywheel surface are critical for proper clutch engagement, smooth shifting, and preventing clutch slippage or chatter.
Furthermore, the function of flywheel extends to the very starting of the engine itself. Around its outer circumference, the flywheel features a ring gear – a hardened steel ring with numerous teeth. When the driver turns the ignition key or presses the start button, the starter motor’s small pinion gear (often called a Bendix drive) engages with these teeth on the flywheel’s ring gear. The powerful electric starter motor then spins the flywheel, which in turn rotates the crankshaft, initiating the combustion cycle within the engine cylinders until the engine can run under its own power.
Without this ring gear providing a point of engagement for the starter, cranking the engine over would be impossible using conventional means. Additionally, in many modern vehicles, especially those with diesel engines or high-torque gasoline engines, a more complex design known as a dual-mass flywheel (DMF) is employed. While performing all the basic functions mentioned above, the specific function of flywheel in a dual-mass setup is enhanced vibration damping.
A DMF consists of two main masses connected by a system of springs and damping mechanisms. This design effectively isolates the harsh torsional vibrations and firing irregularities originating from the engine, preventing them from being transmitted down the drivetrain to the transmission and cabin, resulting in significantly quieter operation and reduced wear on transmission components. While contributing significantly to refinement, DMFs can also be a source of failure and higher replacement costs compared to traditional solid flywheels.
Lastly, although often balanced independently, the flywheel also contributes to the overall balance of the engine’s rotating assembly, working in concert with the crankshaft and harmonic balancer (if equipped) to minimize engine vibrations throughout the RPM range. In essence, the function of flywheel is not singular but a collection of interconnected, indispensable roles: storing and smoothing energy pulses for stable rotation, providing the critical interface for clutch engagement in manual transmissions, enabling engine starting via the ring gear, and, in advanced designs, actively damping drivetrain vibrations, making it a cornerstone component of modern powertrain engineering.
Energy Storage and Optimization
The flywheel stores energy generated by the engine and releases it as needed, helping to maintain a consistent power output. This energy storage capability is crucial for optimizing engine performance, particularly during acceleration and gear shifting. By storing excess energy, the flywheel helps to reduce the strain on the engine, resulting in improved fuel efficiency and reduced wear on engine components.
Engine Balancing and Vibration Reduction
The flywheel also plays a key role in balancing the engine and reducing vibrations. By counteracting the uneven forces generated by the engine’s pistons and crankshaft, the flywheel helps to minimize vibrations that can cause discomfort and fatigue during driving. This balancing effect is essential for maintaining a smooth and comfortable ride, especially in manual transmission vehicles.
Clutch Functionality and Gear Shifting
The flywheel provides a crucial friction surface for your clutch to engage with, allowing for the controlled connection and disconnection of engine power. This interaction between the clutch and flywheel enables smooth gear shifting in manual transmission vehicles by temporarily breaking the power flow between the engine and transmission. The flywheel’s mass helps maintain engine momentum during gear changes, preventing the engine from stalling when the clutch is disengaged.
Some key aspects of the flywheel’s role in clutch functionality and gear shifting include:
- Providing a friction surface for the clutch to engage with, enabling controlled power transfer
- Enabling smooth gear shifting by temporarily breaking the power flow between engine and transmission
- Maintaining engine momentum during gear changes, preventing stalling
- Influencing clutch performance and pedal feel through its surface condition
- Working with the clutch to gradually transfer power, reducing jerking and component damage
By understanding the function of the flywheel in your car’s engine, you can appreciate its importance in maintaining optimal vehicle performance and longevity.

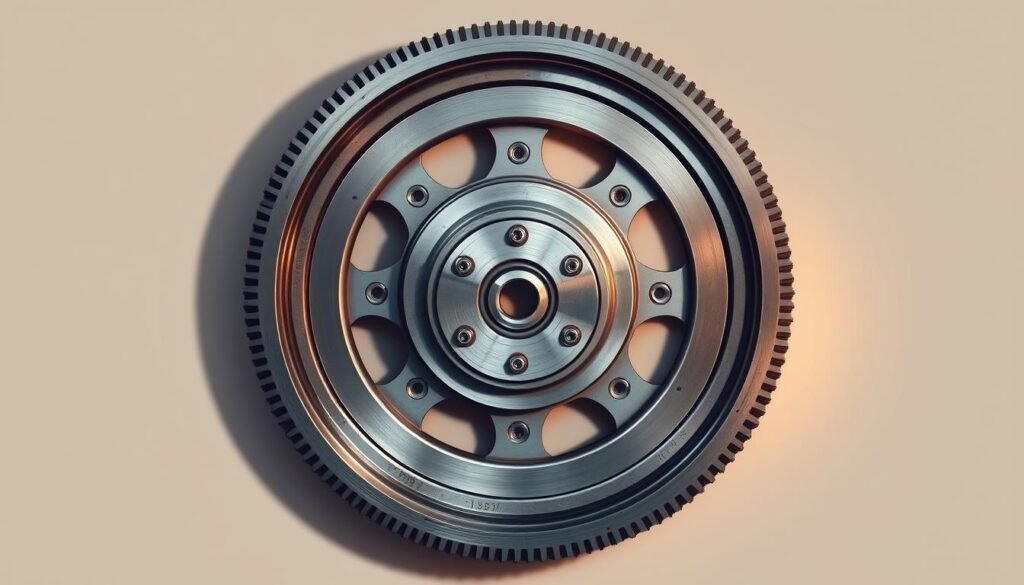

Structure and Components of Automotive Flywheels
To appreciate the importance of a flywheel, it’s crucial to examine its various components and how they contribute to its overall function. The flywheel is not just a simple disc; it’s a complex component with several critical parts that work together to ensure your car’s engine runs smoothly.
Main Body and Outer Rim
The main body of the flywheel is typically made from a dense, heavy material to maximize its energy storage capacity. The outer rim is designed to be robust, as it houses the ring gear and provides the necessary mass for energy storage.
The main body and outer rim are usually constructed as a single unit, ensuring durability and stability. This design helps in maintaining the balance of the flywheel, which is crucial for reducing vibrations and ensuring smooth engine operation.
Ring Gear and Mounting System
The ring gear is a critical component that interfaces with the starter motor to turn the engine over during startup. It’s typically made from a durable material to withstand the high stresses involved in engine starting.
The mounting system ensures that the flywheel is securely attached to the engine’s crankshaft. This is vital for maintaining the alignment and balance of the flywheel, thereby preventing vibrations and potential damage to other engine components.
Friction Surface for Clutch Engagement
The friction surface is the area of the flywheel that comes into direct contact with the clutch disc. This surface is precision-machined to provide consistent friction characteristics and heat dissipation, ensuring reliable clutch engagement and disengagement.
| Component | Function | Material |
|---|---|---|
| Main Body and Outer Rim | Energy Storage | Dense, Heavy Material |
| Ring Gear | Engine Starting | Durable Material |
| Friction Surface | Clutch Engagement | Precision-Machined Material |
The condition of the friction surface is critical to clutch performance and longevity. Over time, heat cycling and friction wear can affect this surface, potentially leading to clutch judder or slippage. Regular inspection and maintenance are essential to prevent these issues.
Types of Car Flywheels
Flywheel technology has evolved to include multiple types, each with its unique characteristics and applications. As you explore the world of automotive engineering, understanding these differences is crucial for making informed decisions about your vehicle’s maintenance and upgrades.
Single-Mass Flywheels
Single-mass flywheels are the traditional type, known for their simplicity and durability. They are a single, solid unit that stores energy as it rotates. These flywheels are typically used in standard vehicle applications where the engine’s power output is not extreme. Their design is straightforward, making them less expensive to manufacture and replace. However, they can be harsh on the transmission and clutch due to their rigid nature, potentially leading to increased wear on these components.
Dual-Mass Flywheels
Dual-mass flywheels, on the other hand, are designed to reduce the vibrations and torsional stress associated with traditional single-mass flywheels. They consist of two masses connected by a damping system, which absorbs the engine’s torsional vibrations. This design significantly improves driving comfort by reducing the noise and vibrations felt within the vehicle. Dual-mass flywheels are particularly beneficial in modern vehicles with lower cylinder counts or those producing high torque at lower RPMs. However, they are more complex and can be more expensive to replace when they fail.
Performance and Specialty Flywheels
Performance flywheels are engineered for high-performance vehicles and racing applications. They are typically made from lightweight materials such as aluminum or chromoly steel, which reduces rotational mass and enhances engine responsiveness and acceleration. While they offer improved performance, there’s a trade-off in terms of reduced energy storage capacity due to their lower mass. Specialty flywheels are designed with specific motorsport disciplines in mind, offering increased strength and heat capacity for high-stress applications. For instance, billet steel flywheels are known for their exceptional strength and durability under extreme conditions.
When considering a flywheel upgrade or replacement, it’s essential to understand the type of flywheel that suits your vehicle’s specific needs. Whether you’re looking for improved performance, better fuel efficiency, or enhanced driving comfort, the right flywheel can make a significant difference.
How Flywheels Work in Different Transmission Systems
Understanding how flywheels work in various transmission systems is essential for appreciating their importance in vehicle mechanics. The type of transmission used in a vehicle significantly influences the design and functionality of the flywheel.
Manual Transmission Applications
In manual transmission vehicles, the flywheel plays a crucial role in smooth engine operation and efficient energy transfer. It is typically heavier and more robust to handle the demands of manual gear shifting. The flywheel’s mass helps to stabilize the engine’s rotational energy, ensuring a smoother driving experience.
The flywheel also serves as a mounting point for the clutch assembly, facilitating the engagement and disengagement of the engine from the transmission. This interaction is critical for the smooth shifting of gears in manual transmissions.
Automatic Transmission Equivalents (Flexplates)
In contrast, vehicles with automatic transmissions use a component called a flexplate, which serves a similar purpose to the flywheel in manual transmissions. The flexplate is typically thinner and lighter, as it is connected to the torque converter, which provides the necessary dampening effect.
The flexplate links the engine to the torque converter, enhancing energy transfer and facilitating the smooth operation of the automatic transmission. Its design reflects the unique demands of automatic transmissions, where the torque converter plays a key role in managing engine energy.
By understanding the differences between flywheels in manual transmissions and flexplates in automatic transmissions, you can appreciate the unique solutions that have evolved to address the challenges of each transmission type.

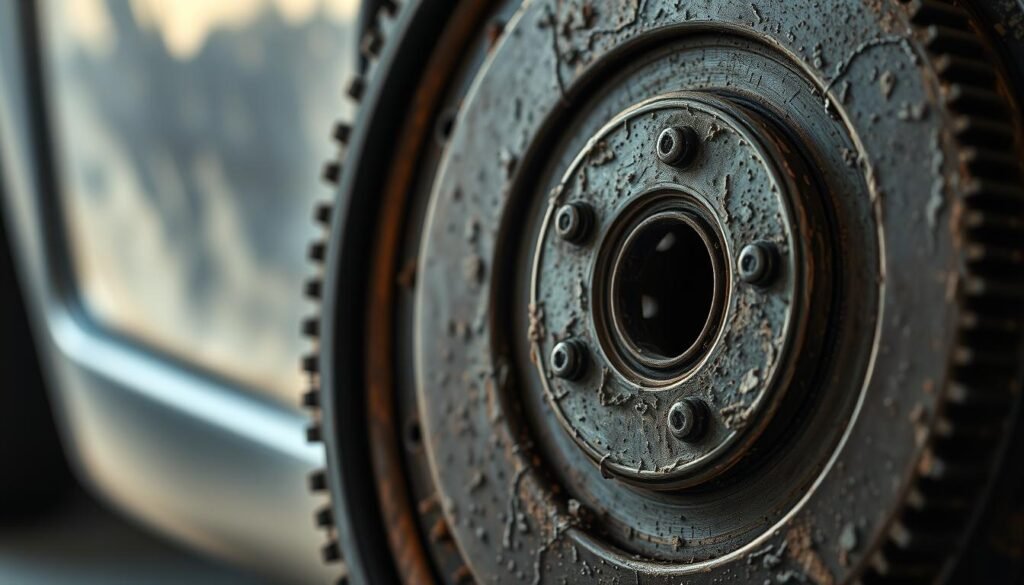

Signs of Flywheel Problems and Failures
When your car’s flywheel starts to malfunction, it’s crucial to identify the signs early to prevent further damage. A flywheel in good condition is essential for the smooth operation of your vehicle’s engine system.
Common Symptoms of Flywheel Wear
One of the first signs of flywheel wear is a change in the way your clutch engages. You might notice a grinding or shaking sensation when pressing the clutch pedal. This is often due to the surface of the flywheel becoming worn or damaged.
Another symptom is excessive heat generated by the flywheel, which can be felt when driving. This heat can cause further damage to the flywheel and other components of your car’s engine.
When to Replace vs. Resurface
In some cases, a damaged flywheel is repairable, particularly if the damage is limited to the surface where the clutch engages. Resurfacing can be a cost-effective solution, but it’s not always the best option.
Mechanics consider factors like heat checking, warping, cracking, and surface wear when deciding whether to resurface or replace the flywheel. If the damage is severe, replacement is usually the safer choice. As one expert notes, “Resurfacing a flywheel can be a viable option, but it’s crucial to assess the extent of the damage first.”
For car owners, understanding the criteria for resurfacing vs. replacement can help in making informed decisions about their vehicle’s maintenance.
Flywheel Maintenance and Care
Flywheel maintenance is a critical aspect of car care that is often overlooked. Proper care can significantly extend the life of your car’s engine and prevent costly repairs. Regular check-ups by a professional mechanic will also catch issues before they become major problems.
Driving Habits That Affect Flywheel Longevity
Your driving habits play a significant role in the longevity of your car’s flywheel. Aggressive driving, such as rapid acceleration and sudden stops, can put excessive wear on the flywheel. Additionally, riding the clutch can cause unnecessary friction, leading to premature wear.
Professional Inspection and Service
Professional inspection and service are crucial for maintaining your car’s flywheel. Technicians can assess the flywheel’s condition during routine maintenance or clutch replacement services. They use specialized tools to measure flywheel runout, surface condition, and heat damage.
| Inspection Item | Description | Importance |
|---|---|---|
| Flywheel Runout | Measures the flywheel’s deviation from perfect rotation | High |
| Surface Condition | Assesses the flywheel’s surface for wear or damage | High |
| Heat Damage | Checks for signs of excessive heat, such as discoloration or warping | Medium |
By understanding the importance of flywheel maintenance and incorporating regular inspections into your car care routine, you can help prevent catastrophic failures and associated collateral damage.
Flywheel Quality and CPO Vehicle Inspections
Flywheel quality is a crucial aspect of CPO vehicle inspections, as it reflects the vehicle’s history and potential for future reliability. When evaluating a used car, the condition of its flywheel can provide valuable insights into how the vehicle has been driven and maintained.
What CPO Inspections Check About the Flywheel
During a CPO inspection, technicians typically examine the flywheel for signs of wear or damage. This includes checking for glazing, heat spots, or cracking, which can be indicative of aggressive driving habits or improper clutch technique. A thorough inspection can help identify potential issues before they become major problems.
| Inspection Criteria | Indicators of Wear or Damage |
|---|---|
| Flywheel Surface | Glazing, heat spots, or cracking |
| Clutch Engagement | Slipping or hesitation during gear shifts |
| Transmission Behavior | Unusual vibrations or noises |
Flywheel Condition as an Indicator of Vehicle Care
The condition of a flywheel can serve as a revealing indicator of how previous owners have treated a vehicle. Excessive wear might suggest neglected maintenance or aggressive driving habits. By examining the flywheel, you can gain a better understanding of the vehicle’s overall condition and history. This information can be invaluable when making a purchasing decision.
The Future of Flywheel Technology in Modern Vehicles
Flywheel technology is poised to transform the way vehicles operate, offering advanced energy storage and retrieval systems. This innovation is particularly relevant in the context of hybrid and electric cars, where flywheel energy storage can supplement or even replace traditional battery technology.
Cutting-edge developments include flywheel designs made from carbon fiber composites, capable of storing significantly more energy storage than traditional designs. These advancements are being integrated into various applications, including regenerative braking systems that capture and store kinetic energy.
The use of flywheel technology in motorsports, such as Formula 1’s Kinetic Energy Recovery Systems (KERS), has paved the way for potential future applications in consumer vehicles, promising to enhance the driving experience.
Key Takeaways About Flywheel Function and Vehicle Health
With a deeper understanding of your car’s mechanics, you’ll appreciate the flywheel’s significance. The flywheel is a critical component that affects everything from engine smoothness to transmission longevity. Proper flywheel function contributes to overall vehicle health through energy storage, vibration dampening, and power transfer.
When purchasing used vehicles, especially those with manual transmissions, considering the flywheel condition is crucial. Your driving habits directly impact flywheel longevity, which in turn affects your car’s performance and maintenance costs. By understanding the importance of the flywheel, you can better appreciate the engineering that goes into your car’s engine.
FAQ
What is the primary role of a flywheel in a car’s engine?
The primary role of a flywheel is to store rotational energy and smooth out the engine’s power output, ensuring a more consistent and stable operation.
How does a flywheel affect the performance of a vehicle with a manual transmission?
A flywheel plays a crucial role in manual transmission vehicles by providing a surface for the clutch to engage and disengage, allowing for smooth gear shifting and helping to maintain momentum.
What are the differences between a single-mass flywheel and a dual-mass flywheel?
A single-mass flywheel is a solid, one-piece unit, whereas a dual-mass flywheel is designed with two separate masses connected by a damping system, which helps to reduce vibrations and torque fluctuations.
Can a flywheel be repaired or does it need to be replaced when it fails?
Depending on the extent of the damage, a flywheel can sometimes be resurfaced, but in many cases, it may need to be replaced to ensure optimal performance and prevent further damage to the engine or transmission.
How do driving habits affect the longevity of a flywheel?
Aggressive driving habits, such as rapid acceleration and frequent clutching, can reduce the lifespan of a flywheel, while smooth and consistent driving can help extend its life.
What is the significance of flywheel quality in a Certified Pre-Owned (CPO) vehicle inspection?
During a CPO inspection, the condition of the flywheel is evaluated to ensure it is in good working order, as a worn or damaged flywheel can be a sign of neglect or poor maintenance.
Are flywheels used in automatic transmission vehicles?
While traditional flywheels are not used in automatic transmission vehicles, a similar component called a flexplate serves a comparable purpose, connecting the engine to the torque converter.
