AC Evaporator Coil Leak? Signs of a Failing Car AC Evaporator

When the summer heat hits, your car’s air conditioning system becomes your best friend. But what happens when it starts blowing warm air instead of refreshing cool air? One common culprit behind a malfunctioning car AC is a problem with the Ac Evaporator Coil often involving a leak. Understanding the signs of a failing evaporator can help you diagnose the issue faster and get back to enjoying comfortable drives.

The evaporator (sometimes referred to as the coil or evaporator core) is a crucial component, essentially the part of your air conditioning system responsible for actually cooling the air that blows into your car interior. If you suspect an AC evaporator coil leak, recognizing the warning signs early is key.

What is a Car AC Evaporator and How Does It Work?

The evaporator is part of your vehicle’s air conditioning system, typically located deep behind the dashboard, often near the heater core within the HVAC box. Its primary job is to absorb heat and humidity from the air inside the car.

Here’s a simplified look at the process:

1. Low-pressure liquid refrigerant passes through the expansion valve and enters the evaporator.
2. As the refrigerant flows through the ac evaporator coils, the pressure drop causes it to rapidly expand and vaporize, turning gaseous.
3. This phase change makes the evaporator extremely cold.
4. The blower fan pushes cabin air across the cold evaporator fins.
5. The evaporator absorbs heat from the air, significantly lowering the air temperature.
6. It also removes moisture in the air (humidity), which condenses on the cold metal surface of the evaporator. This water drips down and exits the vehicle through the evaporator drain tube (that’s the puddle you often see under your car after running the AC).
7. The now gaseous, heat-laden refrigerant exits the evaporator and travels to the compressor to continue the cycle.

The result is the cool and dry air you feel coming from your vents, making the evaporator essential for cooling the air and removing humidity from the air.

Signs Your Car AC Evaporator Might Be Leaking or Failing

A leak in the evaporator is one of the most common ways an evaporator fails. Since it’s hidden, diagnosis can be tricky, but here are common symptoms car owners should watch for:

1. Weak Cooling or Warm Air: This is the most obvious sign. If your car’s air conditioner is only blowing slightly cool air or just warm air, it could indicate low refrigerant levels caused by a leak. This leads to reduced cooling efficiency.
2. AC Compressor Not Engaging: The AC system has pressure sensors. If a significant refrigerant leak occurs (potentially from the evaporator coil), the pressure might drop too low for the compressor to safely engage. It might cycle on and off rapidly or not turn on at all.
3. Sweet Chemical Smell Inside the Cabin: Refrigerant often has a distinct, faintly sweet smell. If the evaporator is leaking, this smell might be noticeable inside the car, especially when you first turn on the air conditioner or fan.
4. Musty or Moldy Smell: While not always a leak, moisture collecting on a dirty or malfunctioning evaporator can lead to mold and mildew buildup, causing unpleasant odors when the blower fan runs. A blockage in the evaporator drain can worsen this.
5. Foggy Windows / Excess Humidity: A properly functioning evaporator removes heat and humidity. If it’s failing, it won’t effectively produce dry air, potentially leading to windows fogging up more easily inside the cabin.
6. Subtle Refrigerant Dye Visible (Rarely): If UV dye has been added to the AC system during previous service, a mechanic might detect traces near the evaporator drain tube, hinting at an internal leak. However, directly seeing a leak on the evaporator itself usually requires significant disassembly because it’s not easy to access.

What Can Cause the Evaporator to Leak or Fail?

Several factors can lead to an evaporator coil leak or general failure:

• Corrosion: This is the most common culprit. Moisture, dirt, and debris accumulating on the evaporator fins can cause the thin metal (usually aluminum) to corrode over time, eventually leading to pinhole leaks. Internal corrosion from contaminants or moisture within the refrigerant circuit can also occur.
• Stress Fractures: Constant expansion and contraction from temperature changes during normal operation can eventually cause tiny cracks or fractures.
• Manufacturing Defects: Though less common, flaws in the evaporator materials or construction can lead to premature failure.
• Physical Damage: While protected behind the dashboard, damage during other repairs in that area could potentially impact the evaporator core.

Diagnosing and Repairing a Leaking Evaporator

Diagnosing an evaporator coil leak definitively often requires a professional mechanic. They use tools like electronic refrigerant leak detectors (“sniffers”) or inject UV dye into the AC system and use a blacklight to pinpoint the source.

If it’s confirmed the evaporator has failed due to a leak, the repair is typically labor-intensive and can have a significant repair cost. This is because:

• The evaporator is buried deep within the dashboard.
• Technicians often need to remove the evaporator, which involves extensive disassembly of the dashboard components.
• The AC system must be evacuated before removal and then recharged with the correct amount of refrigerant after the new evaporator is installed.

Replacing the evaporator is not a simple DIY task for most car owners.

Can You Prevent Evaporator Problems?

While you can’t prevent all failures, regular maintenance can help keep the evaporator in good condition:

• Replace Your Cabin Air Filter: A clean cabin air filter prevents dust, leaves, and debris from reaching and settling on the evaporator coil, reducing the chance of corrosion and buildup.
• Run Your AC Regularly: Even in cooler months, run your car air conditioning for a few minutes occasionally. This helps circulate refrigerant and oil, keeping seals lubricated.
• Address Drain Tube Blockages: Ensure the evaporator drain tube is clear to prevent water from backing up onto the evaporator or into the car interior.

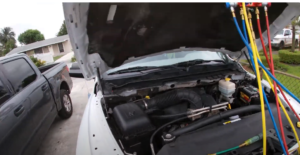

• Regular AC Checks: Have your car’s air conditioning system inspected periodically by a qualified technician. They can check refrigerant levels and pressures, potentially catching small leaks before they become major problems.

  Don’t Ignore the Signs

The AC evaporator coil plays a vital role in your car’s air conditioning, turning warm cabin air into cool and dry air. If you notice symptoms like warm air blowing from vents, strange smells, or your air conditioner struggling to circulate cool air, a failing evaporator – possibly due to an AC evaporator coil leak – could be the reason.

Because the evaporator is difficult to access and repair requires specialized tools and knowledge, it’s best to consult a trusted mechanic if you suspect your evaporator might be faulty. Addressing these warning signs early can prevent further damage to your AC system components like the compressor and get your car’s air back to being comfortably cold air for those hot days. Keep your air conditioning running smoothly by paying attention to how it performs.
